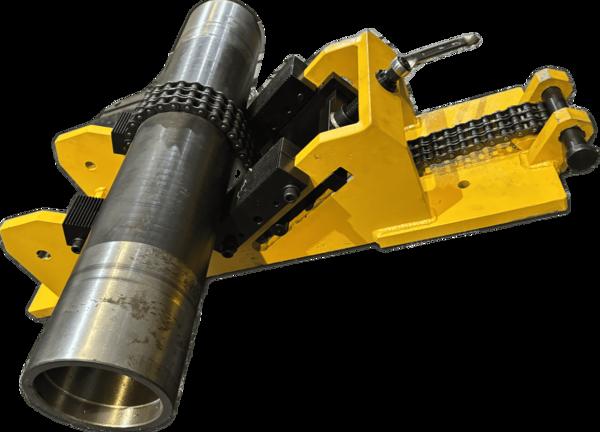

Heavy Duty Chain Vise made in INDIA for hydraulic cylinder repair shop and reconditioning ideal for dismantling and assembling hydraulic cylinders with outer dimensions from 50mm upto 400mm in the same vise. USP : Safety pin locking for additional operator safety and guaranteed tightness.

Manual Expansion Honing Head diameter range 120mm upto 175mm , Dual stage expansion type honing head Also available in extension sizes upto 200mm honing .

Manual expansion Honing Heads for the range 90 - 120 mm , Dual stage expansion system , with rough and fine adjustment feature .

Manual Expansion Honing Head for 70 - 90 range , Dual stage expansion system for rough expansion and fine expansion.

Manual Expansion honing head, for range 40 mm to 50mm achieved using 2 sets of gatters , for range 40-45mm and 45-50mm range.

Manual Expansion honing head, ranges available in 2 sets of gatter ranges 50-55 mm and 55-60 mm. Custom sizes of gatters are possible based on customer requirements.

KMC 30 manual expansion honing heads comes with 2 sizes of gutters combinations 30 -35mm range and 35 -40 mm range , also custom Gatter sets suitable for 32mm honing is also available .

Manual expansion honing head for the range of 20mm to 30 mm , stone carriers available in 20mm, 25mm and 28mm sizes . Most ideal for valve honing , small hydraulic cylinder honing . This tool can be used in drilling machines and lathes with suitable adaptors .

Vertical Honing Machine , Stroke range 200mm to 1000mm diameter range upto 450mm , available in 3 specifications Option 1 : (Fully hydraulic controlled) Basic series Option 2 : (Fully Hydraulic) Schlau Series Option 3 : (Fully Hydraulic) EVO series Option 4 : (Hydraulic stroking , Servo Spindle and Servo Expansion type) Intelli series

Vertical Honing Machine , Stroke range 200mm to 1000mm diameter range upto 450mm , available in 3 specifications Option 1 : (Fully hydraulic controlled) Basic series Option 2 : (Fully Hydraulic) Schlau Series Option 3 : (Fully Hydraulic) EVO series Option 4 : (Hydraulic stroking , Servo Spindle and Servo Expansion type) Intelli series

This machine is best suited for short length blind bored components suitable for suspension cylinders and defence components , the servo stroking enables our customers to stop the stroking very precisely one of the major challenges in blind bore honing. This machine when paired with our Blind bore honing Tools will give you unmatched performance and best possible results .

Horizontal honing Machine hydraulically operated with 4000mm stroke length , ideal for stroke lengths from 750mm upto 4000mm , available in 2 diameter ranges Option 1 : 50mm to 550mm bore diameter , upto 650mm OD clamping Option 2 : 50mm to 800mm bore diameter , upto 1000mm OD clamping This is the basic model of the horizontal honing machine , which we can upgrade to higher lengths at a future stage .
